SPRI beads: How They Work, DNA Cleanup Protocol and Best Practices

SPRI beads have become an essential tool for DNA purification in PCR, sequencing and next-generation sequencing workflows. Laboratories use these paramagnetic particles to bind nucleic acids, isolate them with a magnetic stand, wash away unwanted reaction components and recover purified DNA without centrifugation or membrane filtration.

At first glance, the workflow appears simple: add the beads, incubate, place the sample on a magnet, wash and elute. In practice, however, small handling differences can influence recovery, fragment distribution and downstream performance.

For example, a poorly homogenized suspension may deliver a different bead concentration to each sample. Similarly, a small error in the bead-to-sample ratio may change which fragments bind. Residual ethanol can inhibit subsequent enzymatic reactions, whereas excessive drying can make the pellet difficult to resuspend and reduce elution efficiency.

This guide explains how SPRI beads work and how researchers can use them consistently. In addition, it covers practical details that standard protocols often condense into only a few lines: reagent temperature, suspension homogeneity, viscous-liquid pipetting, magnetic separation, ethanol removal, controlled drying and troubleshooting.

Above all, researchers should follow the instructions supplied with the specific reagent and application.

Why Handling Details Matter in SPRI Beads Workflows

SPRI beads purification combines bead chemistry, buffer composition, pipetting technique and magnetic separation. Consequently, each factor contributes to the final result.

Small Deviations Can Affect Recovery

A change in reagent temperature can increase viscosity. Meanwhile, sedimentation can change the effective bead concentration. Fast pipetting may create bubbles or leave liquid inside the tip, while premature aspiration can remove bead-bound DNA.

These effects become especially important when laboratories process small volumes, work near a fragment-size cutoff or compare results across operators and plates.

Consistency Supports Reproducibility

A reliable protocol should define more than reagent volumes. For instance, it should describe how operators mix the bead stock, how slowly they aspirate viscous liquid, how they identify complete magnetic separation and how they judge the drying endpoint.

By standardizing these physical actions, laboratories reduce variation and improve transferability between manual and automated workflows.

What Are SPRI Beads?

SPRI stands for Solid-Phase Reversible Immobilization. The technology uses functionalized paramagnetic particles as a reversible solid support for nucleic acid purification.

A typical SPRI particle contains a magnetic component and a functionalized outer surface. While the magnetic component allows the particle to move toward a magnet, the surface supports nucleic-acid binding under suitable chemical conditions.

Commercial formulations commonly combine carboxyl-functionalized particles with salts and a molecular crowding agent such as polyethylene glycol. However, manufacturers may use different concentrations and proprietary formulations. Therefore, researchers should not assume that all SPRI beads reagents behave identically.

The word “reversible” describes the central principle of the technology. First, DNA binds to the particles under the conditions created by the binding solution. It then remains attached while the operator removes contaminants. Finally, the DNA returns to the liquid phase during elution.

Paramagnetic Rather Than Permanently Magnetic

SPRI beads respond strongly to an external magnetic field, but they do not behave like permanently magnetized particles when the operator removes the magnet.

This property makes the beads useful in liquid workflows. Away from the magnet, researchers can resuspend and distribute them throughout the sample. By contrast, when the vessel sits on a magnetic rack or plate, the particles move toward the magnet and form a visible pellet, ring or spot.

At that point, the operator can remove the cleared liquid while the bead-bound DNA remains close to the magnet.

Nevertheless, tube geometry, plate design, sample volume and magnet strength all influence how quickly and completely the beads collect. A magnet that performs well with one plate format may perform poorly with another.

What SPRI Beads Remove

In a typical PCR cleanup, the target DNA binds to the beads while unwanted reaction components remain in the liquid or leave the sample during ethanol washing.

Depending on the reagent and protocol, SPRI cleanup may remove:

• Unincorporated primers
• Primer dimers below the binding threshold
• Free dNTPs
• Salts
• Polymerases and other enzymes
• Buffer components
• Other low-molecular-weight impurities

After purification, researchers can use the DNA for sequencing, cloning, genotyping, fragment analysis or additional enzymatic processing.

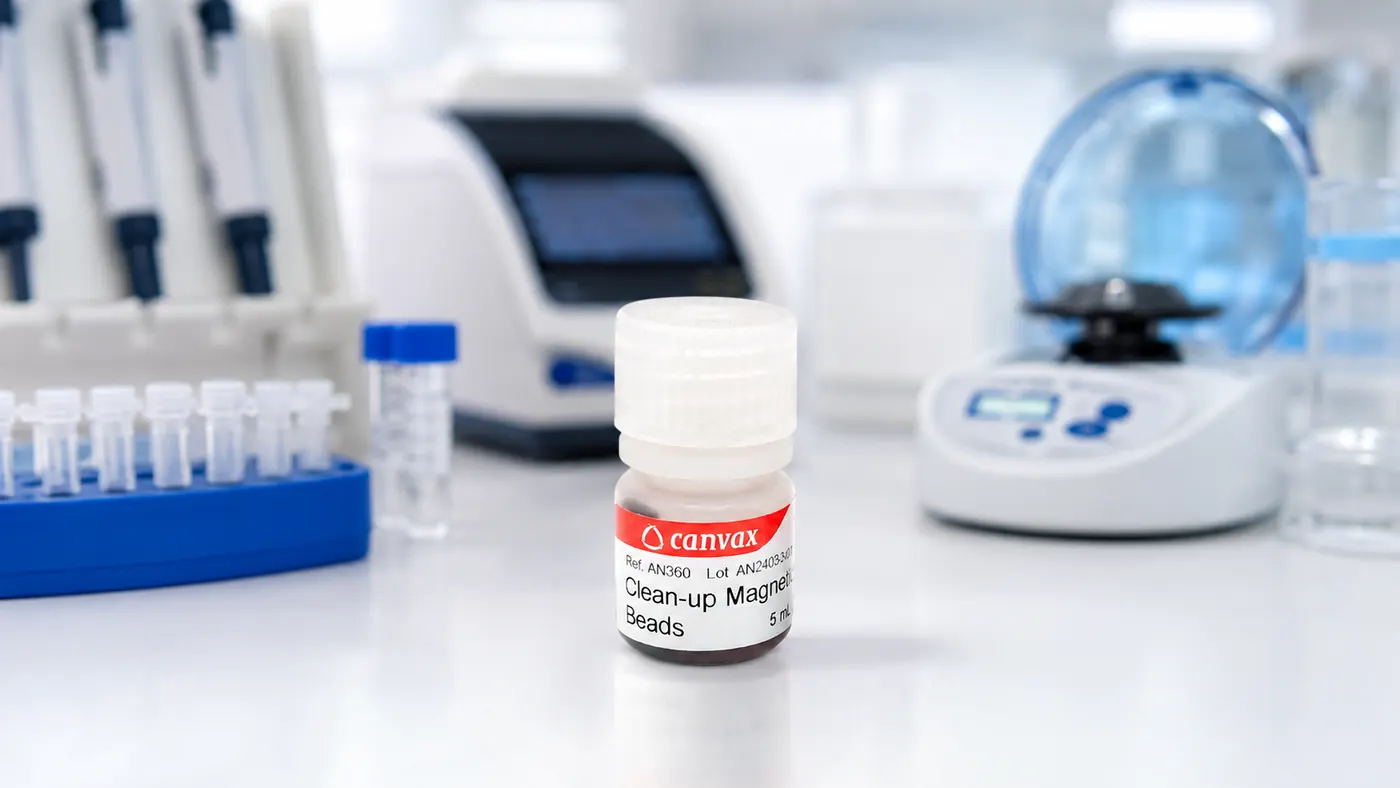

Canvax HigherPurity™ PCR Clean-Up Magnetic Beads support PCR cleanup and the recovery of DNA fragments of at least 100 bp.

Cleanup Beads Are Not Always Size-Selection Beads

Researchers sometimes use the terms DNA cleanup and DNA size selection as though they describe the same process. In reality, they serve different objectives.

A cleanup workflow aims to recover a broad range of desired DNA fragments while removing primers, nucleotides, enzymes and other small components.

By contrast, a dedicated size-selection workflow aims to create a controlled lower cutoff, upper cutoff or fragment interval. Manufacturers formulate and validate size-selection reagents for defined ratio-dependent performance.

Although a cleanup reagent may show size-dependent binding, that behavior does not automatically qualify it as a precise size-selection reagent.

For this reason, laboratories that want to use a cleanup reagent for size selection should establish the required ratios experimentally. Furthermore, they should confirm performance with representative samples, fragment standards and suitable analytical methods.

How Do SPRI Beads Work?

SPRI purification changes the solubility and surface interaction of nucleic acids.

Under normal aqueous conditions, DNA remains soluble because its negatively charged phosphate backbone interacts strongly with water. However, when the operator combines DNA with a suitable binding solution containing salt and a crowding agent, the chemical environment changes.

As a result, the solution reduces water availability and modifies the interactions between DNA, salts and the functionalized bead surface. DNA then associates reversibly with the particles.

Several variables influence the final behavior, including:

• Salt concentration
• Polyethylene glycol concentration
• Sample volume
• DNA concentration
• Fragment-size distribution
• Bead concentration
• Reagent formulation
• Components carried over from the previous reaction

Step 1: DNA Binding

The operator adds the SPRI reagent to the nucleic-acid sample at a defined volumetric ratio. Thorough mixing then distributes the beads and binding components evenly throughout the liquid.

Next, the target DNA shifts from the liquid phase toward the functionalized bead surface. A defined incubation period gives the binding process enough time to proceed.

Poor mixing can create local differences in bead concentration and buffer composition. For example, one part of the sample may receive sufficient binding reagent, while another part receives less. Consequently, uneven distribution can reduce recovery and increase variation between replicates.

For routine PCR cleanup, repeated pipette mixing often provides good control. Several established commercial procedures specify approximately ten mixing cycles before the binding incubation.

When working with high-molecular-weight DNA, however, researchers should use gentler mixing. Vigorous vortexing can shear long DNA molecules. Therefore, slow pipetting, gentle inversion or wide-bore tips may provide a better option.

Step 2: Magnetic Separation

After the binding incubation, the operator places the tube or plate on a compatible magnet.

The magnetic field attracts the particles and concentrates them against one side or surface of the vessel. Meanwhile, the liquid gradually becomes clear as the beads leave suspension.

Before removing the supernatant, the operator should wait until the solution looks fully clear. Sample volume, bead quantity, magnet strength and vessel geometry all influence the separation time.

Removing the supernatant too early can carry suspended beads into the waste. Since the target DNA remains attached to those beads, bead loss directly reduces DNA recovery.

Step 3: Ethanol Washing

The operator keeps the vessel on the magnet and adds ethanol at the concentration specified in the product protocol.

Under these conditions, the ethanol-rich environment helps keep the DNA associated with the bead surface while soluble contaminants leave the sample.

Most procedures use two wash cycles. Nevertheless, the exact volume, ethanol concentration and contact time depend on the reagent and application.

When adding the wash, the operator should avoid directing a strong liquid stream onto the bead pellet. Otherwise, forceful dispensing may dislodge the particles and increase bead loss during aspiration.

Step 4: Controlled Drying

After the final wash, the operator removes the remaining ethanol and allows the pellet to dry briefly.

This step requires balance. On the one hand, insufficient drying can leave ethanol in the sample. On the other hand, excessive drying can compact the bead pellet and make it difficult to resuspend.

Therefore, the goal is not to dry the beads for as long as possible. The operator only needs to remove free ethanol while keeping the pellet easy to resuspend.

Step 5: DNA Elution

The operator removes the sample from the magnet and adds nuclease-free water, a low-salt buffer or another validated elution solution.

Thorough resuspension allows the elution liquid to contact the complete bead surface. Consequently, the DNA returns to the liquid phase.

After the elution incubation, the vessel goes back onto the magnet. Once the liquid becomes clear, the operator transfers the final supernatant containing the purified DNA.

The elution volume affects both concentration and recovery. A small volume may produce a more concentrated sample, but it may not cover the complete pellet. Conversely, a larger volume can improve physical contact but will dilute the DNA.

SPRI Beads for PCR Cleanup and NGS Workflows

Laboratories use SPRI magnetic beads whenever a molecular workflow requires efficient removal of reaction components without centrifugation.

PCR Product Purification

A completed PCR mixture contains the amplified DNA together with polymerase, primers, nucleotides, salts and buffer components.

These materials may interfere with sequencing, cloning, restriction analysis, genotyping or additional enzymatic reactions.

During SPRI cleanup, the amplified DNA binds to the beads. Subsequently, the operator removes many unwanted components with the supernatant and ethanol washes.

For standard cleanup, the main objective is broad recovery above the reagent’s binding threshold.

HigherPurity™ PCR Clean-Up Magnetic Beads support PCR cleanup and the purification of DNA fragments of at least 100 bp. Laboratories can use the product in manual or automated workflows and in tube, 96-well and 384-well formats.

NGS Library Cleanup

NGS library preparation includes several enzymatic stages that may require cleanup before the next operation.

Researchers commonly use magnetic-bead purification after:

• Fragmentation and end repair
• Adapter ligation
• Indexing PCR
• Library amplification
• Target enrichment
• Final library preparation steps

At each stage, the workflow may need to remove enzymes, salts, unincorporated adapters, primers or other unwanted materials.

However, researchers should use the bead ratio defined by the validated library-preparation protocol. A ratio developed for routine PCR cleanup may not provide the same performance in another reagent system or NGS application.

Sequencing, Cloning and Genotyping

Researchers often use purified PCR products for Sanger sequencing, cloning, genotyping, restriction analysis and fragment analysis.

Each application responds differently to contaminants. For instance, residual primers and dNTPs may reduce sequencing quality. Salts and ethanol may interfere with enzymes, whereas free primers and nonspecific products may complicate fragment analysis.

A consistent cleanup method helps reduce these sources of variation. Although the cleanup step cannot correct an unsuccessful PCR, it can prevent unnecessary reaction components from reaching the next stage.

Advantages for High-Throughput Laboratories

Magnetic-bead purification removes the need to process every sample through an individual centrifuge column.

This advantage becomes particularly relevant when laboratories handle dozens or hundreds of reactions in parallel.

Moreover, the bind, separate, wash and elute sequence transfers well to multiwell plates and liquid-handling platforms. Magnetic purification therefore supports scalability, parallel processing and automation.

For low sample numbers, spin columns may still provide a practical solution. Ultimately, the best format depends on throughput, equipment, workflow design and operator experience.

The Canvax article PCR Purification: Magnetic Beads vs Spin Columns provides a more detailed comparison.

How the SPRI Bead-to-Sample Ratio Affects DNA Recovery

The bead-to-sample ratio describes the volume of SPRI reagent that the operator adds relative to the sample volume.

For example:

• A 1.0× ratio means that the operator adds the same bead volume as the sample volume.
• A 1.8× ratio means that the operator adds 18 µL of bead reagent to 10 µL of sample.

The ratio influences more than the number of beads. Because the reagent also contributes polyethylene glycol, salts and other binding components, changing the bead volume changes the complete chemical environment.

Why Higher Ratios Capture Smaller Fragments

As a general principle, higher bead-to-sample ratios promote the binding of progressively smaller DNA fragments.

Lower ratios, by contrast, tend to favor larger fragments and leave more small DNA in the supernatant.

Researchers use this relationship in both cleanup and size-selection workflows. However, the exact fragment cutoff depends on the formulation, sample composition and protocol.

Therefore, a ratio established with one commercial reagent may not produce the same result with another.

In addition, salt concentration, DNA concentration, fragment distribution and previous reaction components may change the effective binding conditions.

Ratios for Routine Cleanup

A routine PCR cleanup usually uses a ratio that recovers a broad fragment range above the reagent threshold while removing primers and small contaminants.

Researchers should obtain the appropriate ratio from the manufacturer’s instructions.

Some established cleanup systems use 1.8×. Nevertheless, laboratories should not treat that number as universal. A direct volume-for-volume substitution between different products may change recovery and fragment distribution.

Single-Sided Size Selection

A single-sided selection creates one effective cutoff.

Depending on the procedure, the operator may:

• Bind larger fragments and leave smaller ones in the supernatant.
• Bind unwanted large fragments first and retain smaller target fragments in the supernatant.

The terms left-side and right-side selection can confuse users because they often refer to fragment position on an electropherogram.

For clarity, a protocol should identify which fraction contains the target after every step.

Double-Sided Size Selection

A double-sided selection uses two binding conditions to isolate DNA within a defined interval.

First, a typical workflow uses a lower ratio to capture and remove fragments above the desired upper limit. The operator then keeps the supernatant and adds more bead reagent.

Afterwards, the increased ratio captures fragments above the desired lower limit. Very small fragments remain in the liquid and leave the sample with the final supernatant.

Because the workflow contains two sequential binding steps, it introduces more opportunities for error. The operator must:

• Retain the correct supernatant after the first binding.
• Calculate cumulative bead volumes accurately.
• Track which fraction contains the target.
• Apply consistent mixing and incubation times.

Why Accurate Pipetting Matters

SPRI suspensions contain viscous components such as polyethylene glycol. As a result, they do not behave like water during aspiration and dispensing.

Fast pipetting can introduce bubbles, leave liquid inside the tip or deliver a smaller volume than the pipette setting suggests.

Even a small volumetric deviation may alter the effective ratio, especially in low-volume workflows.

Possible consequences include:

• Lower DNA recovery
• Increased recovery of unwanted small fragments
• Loss of fragments close to the intended cutoff
• Variation between wells
• Inconsistent library profiles

For this reason, researchers should treat the bead suspension as a viscous reagent.

Aspirate slowly, pause briefly after aspiration and dispense steadily. In addition, inspect the tip for retained liquid.

Automated platforms require the same attention. Therefore, laboratories should optimize aspiration speed, dispense speed, tip height, pre-wetting and liquid-class settings.

Step-by-Step SPRI Bead Cleanup Workflow

The following sequence describes a general PCR cleanup workflow. It does not replace the product-specific protocol.

1. Prepare the Workspace and Reagents

First, confirm that the magnetic stand matches the selected tubes or plates. An unsuitable magnet may collect beads slowly or leave particles suspended.

Next, prepare the required ethanol concentration with molecular-biology-grade water and accurately measured ethanol.

Prepare the working ethanol solution on the day of use because evaporation and environmental exposure can alter its concentration.

Before starting, label the destination tubes or plate. This simple step reduces delays during the final transfer and prevents excessive drying.

2. Equilibrate the Bead Reagent

Remove refrigerated beads early enough for them to reach the working temperature specified by the protocol.

Many library-preparation workflows recommend approximately 30 minutes at room temperature.

Cold PEG-containing solutions show greater viscosity and may produce less consistent pipetting. Therefore, standardizing the equilibration period helps laboratories reduce variation between runs.

However, do not use uncontrolled heating to accelerate this step.

Canvax recommends storing HigherPurity™ beads at approximately 4°C, protected from light. In addition, the reagent should not be frozen.

3. Resuspend the Beads Completely

Magnetic particles settle during storage.

Before pipetting, mix the container vigorously until the suspension looks uniform and no dense sediment remains on the bottom or walls.

For a small working tube, vortexing for approximately 10–15 seconds provides a practical starting point. Afterwards, inspect the suspension visually.

During a long run, the stock may settle again. Consequently, periodic resuspension helps early and late samples receive a comparable bead concentration.

This vigorous homogenization applies to the reagent stock. Once the beads contact long DNA molecules, researchers should use a gentler method.

4. Calculate the Required Bead Volume

Determine the true sample volume before calculating the bead volume.

Do not rely automatically on the nominal PCR volume because evaporation, previous transfers or reagent additions may have changed it.

Use the product-specific calculation:

Bead volume = sample volume × specified bead ratio

For variable sample volumes, prepare a pipetting table before starting.

In automated methods, include the required dead volume in the reagent reservoir. However, do not add that dead volume to the ratio calculation for each sample.

5. Pipette the Viscous Suspension Slowly

Immediately before aspiration, confirm that the stock remains homogeneous.

Then, aspirate slowly and keep the tip below the liquid surface. Avoid positioning it against settled material or the bottom of the container.

Pause briefly after aspiration so that the complete volume enters the tip.

During dispensing, move slowly and check that no significant liquid remains inside the tip.

In some workflows, pre-wetting or reverse pipetting may improve consistency. Nevertheless, laboratories should validate the selected technique before routine use.

6. Mix the Beads with the Sample

Mix until the complete sample shows a uniform appearance.

For routine PCR cleanup, repeated pipette mixing usually provides good control. Approximately ten slow mixing cycles often produce an even suspension.

When the sample contains high-molecular-weight DNA, avoid vigorous vortexing. Instead, use slow pipetting, gentle inversion or wide-bore tips to reduce mechanical shearing.

A longer incubation cannot compensate for poor initial mixing. Therefore, make sure that the bead suspension contacts the complete sample.

7. Incubate for DNA Binding

Allow the sample to incubate for the duration specified in the protocol.

During this period, keep the vessel at the required temperature and protect it from unnecessary evaporation.

For large batches, maintain similar binding times across all wells. Multichannel pipetting, synchronized groups or automation can improve timing consistency.

8. Perform Magnetic Separation

Place the tube or plate on the magnet without shaking it.

Then, wait until the liquid becomes fully clear and the beads form a compact pellet, ring or spot.

Some systems achieve separation within approximately two minutes, while others may require up to five minutes or longer.

Rather than relying only on time, use visual clarification as the main endpoint.

When removing the supernatant, position the aspiration tip on the side opposite the magnet. Aspirate slowly and avoid touching the pellet.

9. Wash with Fresh Ethanol

Keep the vessel on the magnet throughout the wash.

Add the specified ethanol gently against the wall opposite the pellet.

Unless the protocol explicitly requires it, do not resuspend the beads.

After the specified contact time, aspirate the wash carefully. Then, repeat the wash as required.

Different products may specify 70%, 80%, 85% or another ethanol concentration. Therefore, follow the exact product instruction.

10. Remove Residual Ethanol

After the final wash, remove as much ethanol as possible without disturbing the pellet.

If needed, perform a brief centrifugation to collect residual droplets at the bottom. Afterwards, return the vessel to the magnet and remove the final droplet with a fine 10 µL pipette tip.

Only use this approach after removing the main wash volume. Otherwise, a large liquid volume may redistribute the beads during centrifugation.

11. Dry Without Over-Drying

Allow the pellet to air-dry until the wet shine disappears and the surface looks matte.

Use pellet appearance rather than a rigid universal time because temperature, airflow, humidity, plate format and bead quantity all influence drying speed.

Do not wait for cracks to appear. Cracking indicates excessive drying and often makes the pellet more difficult to resuspend.

12. Elute the DNA

Remove the vessel from the magnet and add the specified elution solution.

Next, pipette until the beads form a uniform suspension. Bring any clumps from the walls back into the liquid.

After the required incubation, return the vessel to the magnet and wait until the eluate becomes clear.

Finally, transfer the purified DNA to a clean tube or plate without aspirating the beads.

SPRI Bead Best Practices for Consistent DNA Recovery

Control Reagent Temperature

Follow the temperature instructions in the product protocol.

When a procedure calls for room-temperature reagent, allow the beads to equilibrate consistently between runs.

Otherwise, a method developed with equilibrated reagent may not perform identically when operators use beads directly from refrigerated storage.

Homogenize Before Dispensing

Mix the stock before the first aspiration and after any long interruption.

For large plates or automated runs, add periodic reagent-resuspension steps.

Without regular mixing, sedimentation can create systematic plate effects. For example, early wells may receive a different bead concentration from late wells.

Use a Viscous-Liquid Pipetting Technique

For manual processing:

• Aspirate slowly.
• Dispense slowly.
• Pause after aspiration.
• Avoid bubbles.
• Inspect the tip for retained liquid.
• Maintain a consistent immersion depth.

For automated processing:

• Develop a dedicated liquid class.
• Optimize aspiration and dispense speeds.
• Consider tip pre-wetting.
• Control reservoir geometry.
• Validate the method across the full plate.

Protect Long DNA from Shearing

Match the mixing method to the target DNA length.

Routine PCR products generally tolerate normal pipette mixing. High-molecular-weight DNA, however, requires gentler handling.

Therefore, use slow pipetting, gentle inversion or wide-bore tips when the workflow must preserve long fragments.

Wait for Complete Magnetic Collection

Do not remove the supernatant while the liquid remains cloudy.

If magnetic separation progresses slowly, check:

• Magnet compatibility
• Vessel geometry
• Sample volume
• Bead quantity
• Tube or plate positioning
• Magnet cleanliness
• Bead resuspension before separation

Prepare Ethanol Accurately

Prepare the concentration specified by the product protocol.

Measure ethanol and water carefully. In addition, close the container promptly and label the solution with concentration and date.

For consistent results, prepare a fresh working solution on the day of use.

Balance Ethanol Removal and Drying

Residual ethanol and excessive drying create opposite problems.

Residual ethanol may inhibit downstream enzymes. Conversely, excessive drying may reduce bead resuspension and DNA recovery.

Therefore, begin elution when the pellet looks matte but remains intact.

Resuspend Completely During Elution

Make sure that the elution buffer contacts the complete pellet.

Bring clumps into the liquid and continue mixing until the suspension looks uniform.

When using a small elution volume, also verify that the liquid covers the entire pellet.

SPRI Bead Troubleshooting

Why Is My DNA Yield Low?

Start by checking whether the operator fully homogenized the bead stock.

Next, confirm the true sample volume, bead volume and ratio. Then, review the mixing step, binding time and magnetic separation endpoint.

In addition, check whether any beads entered the discarded supernatant.

Finally, inspect the drying and elution steps. A cracked pellet, incomplete resuspension or insufficient elution volume can reduce recovery.

Also confirm that the target DNA falls within the documented range of the selected reagent.

Why Has My Fragment Distribution Changed?

A changed fragment profile often indicates a change in the effective bead ratio.

Possible causes include:

• Inaccurate sample volume
• Pipetting error
• Incomplete aspiration of viscous reagent
• Bubbles
• Bead sedimentation
• Use of a ratio developed for another formulation
• Changes in upstream buffer composition

When fragment distribution matters, laboratories should analyze representative samples with electrophoresis or capillary fragment analysis.

Why Are the Beads Difficult to Resuspend?

Excessive drying provides the most common explanation.

A cracked or highly compact pellet may require repeated pipetting and a longer elution period.

To prevent the problem in future runs, begin elution when the pellet loses its wet shine but remains intact.

Why Is My Downstream Reaction Performing Poorly?

Residual ethanol should rank among the first factors to investigate.

First, review the final aspiration step, the drying endpoint and the bottom of the tube or well.

Then, consider bead carryover, low DNA concentration, incompatible elution buffer and contaminants already present in the starting sample.

Manual Versus Automated SPRI Bead Workflows

Manual and automated methods use the same core chemistry, but they introduce different sources of variation.

Manual Processing

Manual cleanup works well for small and medium sample numbers.

It allows the operator to inspect bead resuspension, magnetic collection and pellet drying directly.

However, the main risks include:

• Operator-to-operator variation
• Inconsistent pipetting speed
• Unequal incubation times
• Inaccurate delivery of viscous reagent
• Premature aspiration
• Variable drying

For this reason, a robust manual procedure should define the number of mixing cycles, aspiration speed, separation endpoint and drying appearance.

Automated Processing

Automation supports 96-well and 384-well formats, reduces repetitive handling and integrates cleanup into larger molecular workflows.

Canvax HigherPurity™ PCR Clean-Up Magnetic Beads support both manual and automated processing.

Nevertheless, automation shifts the main development priorities toward:

• Liquid-class optimization
• Reservoir resuspension
• Dead-volume control
• Magnet and plate compatibility
• Aspiration height
• Timing across the plate
• Evaporation control

Laboratories should evaluate the complete plate rather than only a few central wells. In particular, edge wells and late-processing positions can reveal evaporation, timing and sedimentation effects.

Choosing SPRI Beads for Routine PCR Cleanup

The most suitable reagent should match the required fragment range, throughput, hardware and downstream application.

Confirm the Documented Fragment Range

Check whether the target DNA falls within the manufacturer’s stated range.

HigherPurity™ PCR Clean-Up Magnetic Beads support the purification of DNA fragments of at least 100 bp.

Therefore, laboratories should position the product as a PCR cleanup and broad DNA purification solution rather than a calibrated size-selection reagent unless they perform their own validation.

Define Cleanup or Size Selection

Decide whether the workflow needs broad recovery or a controlled fragment interval.

Routine PCR cleanup focuses on contaminant removal and target recovery.

Precise NGS size selection, by contrast, requires validated ratios, representative samples and analytical confirmation.

Assess Manual and Automated Compatibility

A small laboratory may prioritize simple handling and small pack sizes.

A sequencing core or biotechnology company, however, may require large-volume formats, automation compatibility and consistent plate-wide performance.

Review Technical Documentation

Look for clear information on:

• Protocol conditions
• Storage
• Supported applications
• Fragment range
• Safety
• Quality control
• Available formats

Canvax provides product documentation and quality-control information for HigherPurity™ PCR Clean-Up Magnetic Beads.

Consider Technical Support

Method transfer may require more than replacing one liquid with another.

For example, laboratories may need to review ratios, pipetting parameters, magnet compatibility and automation settings.

For technical guidance, researchers can contact the Canvax team.

Additional products are available in the Canvax DNA & RNA Extraction portfolio and Related DNA & RNA Extraction Reagents category.

Frequently Asked Questions About SPRI Beads

What does SPRI stand for?

SPRI stands for Solid-Phase Reversible Immobilization. The term describes the reversible association of nucleic acids with a solid bead surface under defined chemical conditions.

How do SPRI beads bind DNA?

The reagent combines salts, crowding agents and a functionalized particle surface. Together, these conditions reduce DNA solubility and promote reversible association with the beads.

What is the SPRI bead-to-sample ratio?

The ratio compares the bead-reagent volume with the sample volume. Consequently, it influences the binding environment and the range of fragments that the workflow recovers.

Does a higher ratio capture smaller DNA fragments?

As a general rule, yes. Higher ratios usually promote the binding of smaller fragments.

However, the exact cutoff depends on the reagent, sample and protocol.

Can any cleanup bead perform precise size selection?

A cleanup reagent may show size-dependent binding, but precise size selection requires validation.

Therefore, researchers should not assume that cleanup and size-selection products produce the same cutoff at the same ratio.

Should SPRI beads reach room temperature before use?

Follow the product-specific protocol.

Many refrigerated-bead workflows recommend approximately 30 minutes at room temperature to improve pipetting consistency.

Why should I mix SPRI beads before use?

The particles settle during storage.

Consequently, complete homogenization helps every sample receive a consistent bead concentration.

Can I vortex SPRI beads?

Researchers can normally vortex the reagent stock when the manufacturer permits it.

After adding the beads to high-molecular-weight DNA, however, use gentler mixing to reduce shearing.

Can I freeze SPRI beads?

Do not freeze a reagent unless its instructions explicitly allow freezing.

Store HigherPurity™ beads at approximately 4°C, protected from light, and do not freeze them.

How long should samples remain on the magnet?

Wait until the beads collect completely and the liquid looks clear.

Depending on the format, magnet and volume, this process may take approximately two to five minutes or longer.

Why should I prepare ethanol fresh?

Evaporation and environmental exposure can change ethanol concentration.

For this reason, preparing the working solution on the day of use helps maintain consistent wash conditions.

How dry should the pellet look?

Begin elution when the pellet loses its wet shine and looks matte.

Importantly, do not wait for the pellet to crack.

Can residual ethanol inhibit downstream reactions?

Yes. Residual ethanol can reduce the performance of PCR, ligation and other enzymatic reactions.

What should I do after over-drying the beads?

Add the elution buffer and pipette until the pellet disperses completely.

Afterwards, quantify the eluate before continuing because recovery may decrease.

Can SPRI beads purify RNA?

Some SPRI-based products support RNA or cDNA purification.

However, researchers should use a reagent that the manufacturer has designed and validated for the specific nucleic acid.

Can laboratories automate SPRI cleanup?

Yes. Many magnetic-bead workflows support liquid-handling platforms.

Successful automation, however, requires appropriate pipetting settings, reservoir mixing, magnetic hardware and plate compatibility.

What fragment sizes can HigherPurity™ PCR Clean-Up Magnetic Beads recover?

The documented range covers DNA fragments of at least 100 bp.

Improve the Consistency of Your DNA Cleanup Workflow

SPRI bead purification follows a simple sequence, but consistent technique determines the final performance.

First, researchers should store the reagent correctly, equilibrate it according to the protocol and restore a uniform suspension before dispensing.

Next, they should pipette the viscous reagent slowly and calculate the bead-to-sample ratio from the true sample volume.

After binding, the operator should allow enough time for complete magnetic collection. Careful aspiration protects bead-bound DNA, while correctly prepared ethanol removes unwanted reaction components.

The drying step requires particular attention. Residual ethanol may interfere with downstream enzymes, whereas excessive drying can reduce resuspension and recovery.

Finally, complete bead resuspension during elution helps release the DNA efficiently.

HigherPurity™ PCR Clean-Up Magnetic Beads provide a scalable SPRI-based option for PCR product cleanup and the purification of DNA fragments of at least 100 bp.

Canvax offers several pack sizes for manual and automated workflows, including sequencing, cloning, genotyping and NGS-related cleanup.

Explore the product specifications or contact Canvax to discuss sample volume, throughput or automated purification requirements.
